A4 , A3 Size High Efficiency Industrial T - Shirt UV Printer For Textiles

What is UV Printing?

UV printing is a form of digital printing that uses ultra - violet lights to dry or cure ink as it is printed. As the printer distributes ink on the surface of a material ( called a " substrate ") , specially designed UV lights follow close behind , curing - or drying - the ink instantly. Originally developed for quickly drying gel nail polishes during manicures , ultraviolet light applications quickly expanded into industrial and commercial markets. Because the UV lights cure any printed ink immediately , the dots of wet ink do not get a chance to spread out once printed , resulting in much finer detail. In addition , UV cured inks are weather-resistant and offer increased resistance to fading.

Specification

Model Number	ZZ1s
Printing Technology	6 color Micro Piezo inkjet technology
Ink Color ( UV ink )	K C M Y LC LM
Printer Head	Epson DX5
Printing Speed	8 pass , A4 size , 70 seconds
Max Print Resolution	16 pass
Max Printing Size	33cm * 60cm
Print Height Adjustment	10cm
Printer Size ( L * W * H)	690 * 730 * 430 mm
Package Size (L * W * H)	845 * 810 * 600 mm
Operating Temperature	0 - 35 ℃ ( 50-95 ℉)
Interface	USB 2.0
Cooling System	Water cooling and wind cooling system
Printing Software	RIP software, photoshop , CorelDARW , Illustrator , etc.
Cleaning method	Using computer automatic cleaning function " Printer Properties " maintenance " nozzle cleaning "
Weight ( N. / G. )	46 Kg / 76.5 Kg
Power Supply	VAC220 / 110 ± 10 , 50-60 HZ , Power ≤ 35W
Operating Systems	Windows 7 / 98 / Me / Vista / 2000 / 07 / 09 / XP / MAC / NT
Ink Cartridge	Continuous ink supply system
Warranty	One year ( except ink tubes , cleaning unit , printer head and damage by human )
Print Materials	Wooden , glass , acrylic , metal , phonecases , bottles , CD , pen , golfball and so on
Height Adjustment	Automatic

Application :

Ideally suited to giftware, souvenirs, packaging, 3D effects, displays, signage, individual parts decoration, prototyping, industrial marking etc.

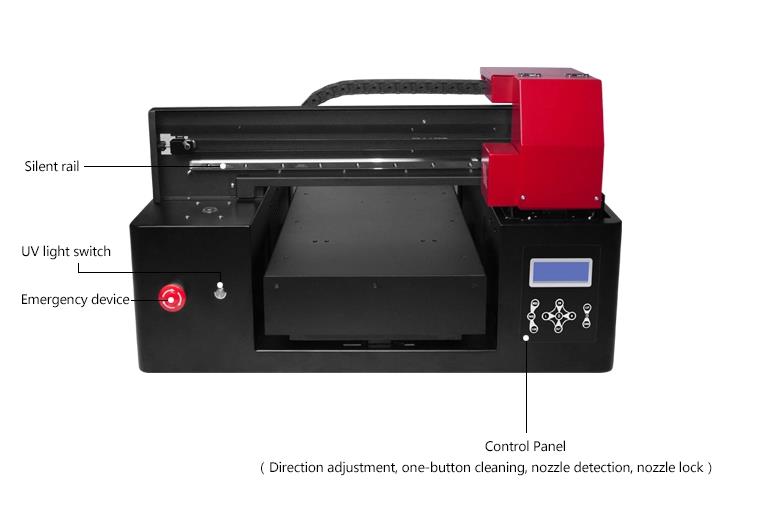

Details :



Silent rail : The printer makes less noise and quieter.


Cooling system : UV lamp and independent water cooling system.


Printhead moisturizing system : Keep the printhead always wet and not clogged.


Ink cartridge : More convenient filling of ink.


Emergency device : Emergency brake button.











Packaging & Delivery



Selling Units : Single item


Single package size : 84X81X60 cm


Single gross weight : 80.000 kg



Packing Details:



Export Wooden box

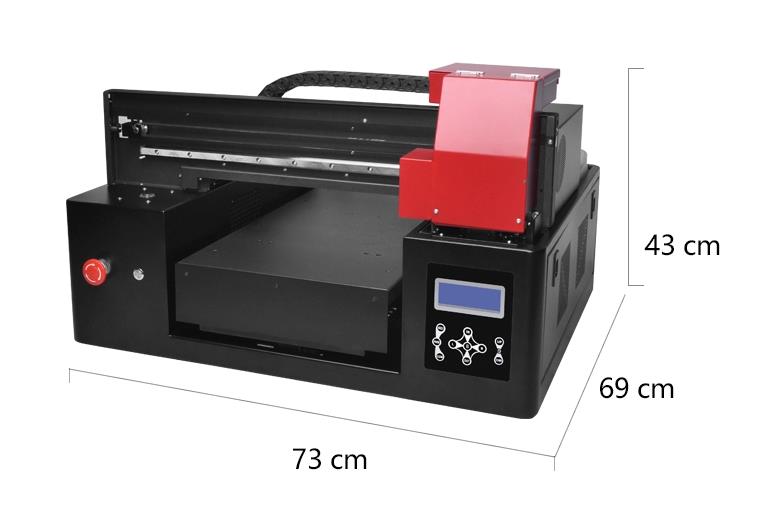

Product Dimension : 69*73*43cm
Packing Dimension : 84*81*60cm
N / G.W: 50kg / 80kg
Volume : 0.5CBM

Foshan Chris V.G Printing Consumables Co., Ltd. established in 2017 is a professional supplier , engaged in the research , development , sale and service of office and commercial printing materials and equipments , including all kinds of Printing papers , PET stickers , inks , cartridges and digital inkjet printers. Our CBD is located in Foshan Guangdong China with convenient transportation access to Guangzhou and Shenzhen port.

Dedicated to strict quality control and thoughtful customer service , our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction. In addition, our cooperation factory has 4 big production workshops , more than 6 production line , which make us positively in OEM orders , fast in shipment and delivery. Any selecting from our catalog or seeking engineering assistance for customization is welcome , feel free to send your inquiry to us , quick respond will be made anytime.
